PZ41H slag discharge gate valve
更新時間：2018.07.20
排渣閘閥說明：PZ41H/X排渣閘閥適用于火力電站水利系統及水利工程的灰漿排放系統管路上，切斷或接通管路中的介質，適用介質為灰水混合物，渣水混合物（渣水比16）.
產品名稱 : 排渣閘閥
型號： PZ41H/X
口徑： 50～500mm
壓力： 1.6MPa～6.4MPa
材質： 鑄鋼、不銹鋼
設計與制造標準：
●設計與制造：GB12234 GB2595
●法蘭尺寸：GB9113 JB/T79
●壓力溫度：JB/T74 GB9131
●結構長度：GB/T12221
●對焊連接尺寸：---
●檢驗與試驗：JB/T9092 GB13927

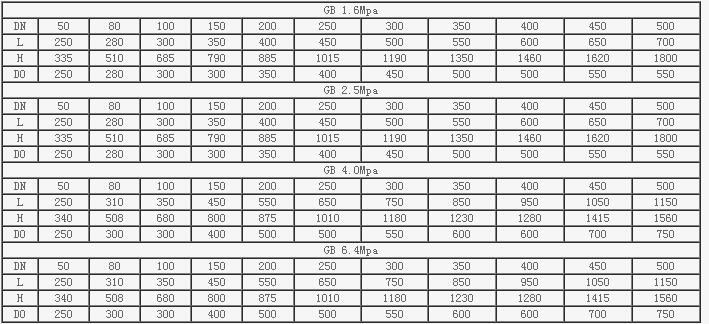

排渣閘閥安裝尺寸及重量
